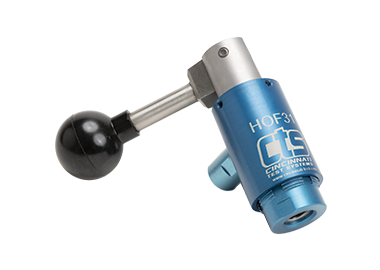

HOF31 Manual External Connector

HOF31 is designed to seal smooth outer diameters in the range of 0.100" to 0.510".
HOF31_CTS-Connect__500x400

HOF31-AA manually-actuated

HOF31-AA CTS Connect manually-actuated OD hand seal assembly with a sealing range of .100 - .180". Plug and fill style with fill port option.

HOF31

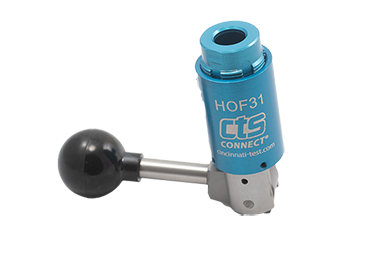

HOF31 Body Only w/o Seal Kit

HOF31-AB manually-actuated

HOF31-AB CTS Connect manually-actuated OD hand seal assembly with a sealing range of .180 - .260". Plug and fill style with fill port option.

HOF31-AC manually-actuated

HOF31-AC CTS Connect manually-actuated OD hand seal assembly with a sealing range of .260 - .340". Plug and fill style with fill port option.

HOF31-AE manually-actuated

HOF31-AE CTS Connect manually-actuated OD hand seal assembly with a sealing range of .340 - .420". Plug and fill style with fill port option.

HOF31-AF manually-actuated

HOF31-AF CTS Connect manually-actuated OD hand seal assembly with a sealing range of .420 - .510". Plug and fill style with fill port option.

HOF31-M10

CTSCONNECT HOF31-M10 OD Manual Seal w/ Fill Port - M10 Seal Range

HOF31-M8

CTSCONNECT HOF31-M8 OD Manual Seal w/ Fill Port - M8 Seal Range

HOF31-NPT-0125 manually-actuated

HOF31-NPT-0125 CTS Connect manually-actuated OD hand seal assembly for sealing a 1/8"NPT male thread. Plug and fill style with fill port option.

HOF31-SAE-0312

CTSCONNECT HOF31-SAE-0312 OD Manual Seal w/ Fill Port - 5/16 SAE Seal Range

HOF31-SAE-0375

CTSCONNECT HOF31-SAE-0375 OD Manual Seal w/ Fill Port - 3/8 SAE Seal Range

HOF31-SAE-0437

CTSCONNECT HOF31-SAE-0437 OD Manual Seal w/ Fill Port - 7/16 SAE Seal Range

HOF31-SAE-0500

CTSCONNECT HOF31-SAE-0500 OD Manual Seal w/ Fill Port - 1/2 SAE Seal Range

Talk to Us About Your Sealing Design

Request a quote for the pneumatic seals and pneumatic fittings your application requires or contact us to learn more about our high-performance CTS Connect products.
