Internal Seal Manual Connectors

The CTS Connect HI/HIF/HIH series manual connectors effectively seal the inside diameter (ID) on smooth, rough, or threaded circular features of a part. The HI ID manual connectors consist of a cam-driven piston that compresses the CTS-proprietary seal material against the surface of the part, creating a tight seal that meets all test pressure requirements, regardless of surface shape or finish.

Sealing range from 0.270”-3.005” and standard NPT, Metric, SAE, BS ports.Rated for test pressures from vacuum to 100 psig depending upon port surface finish. Available in plug style, fill style, and fill style with handle.

Images of CTS inside diameter hand seals side by side in grey boxes with blue box captions below: plug style, fill style and fill style with handle.

HI Series Pneumatic Internal Hand Seal

The HI Series plug-style models are available with and without grip handles.

The HIF Series manual seals perform the same port sealing function as the HI connectors but also provide a fill port to allow filling of the part after sealing. This feature allows gas or fluid to fill the part for processing or testing.

The HIH connector incorporates the same sealing and filling capability as the HIF model, but has a comfort grip handle for better ergonomics.

Key Features of the HI/HIF/HIH Series of CTS Connects:

  • Superior sealing capability without the risk of scratching the surface of the part
  • Threaded and tapered connector nose
  • Large test/fill port holes for better conductance
  • Long seal life
Contact Us to Talk about Your Sealing Requirements

Find the HI Connector for Your Manual Sealing Application

CTS-placeholder_380x270

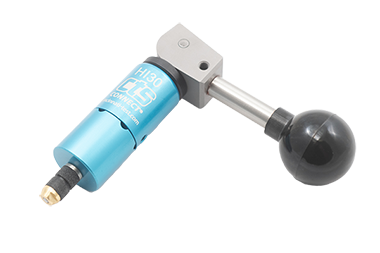

HI30

The HI30 Connector is designed for use with inner diameters of 0.290 in to 0.394 in. Select the HI30 to see specific model numbers for your specific part size application.
HI31_CTS-Connect__380x270

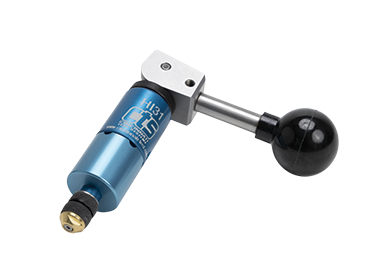

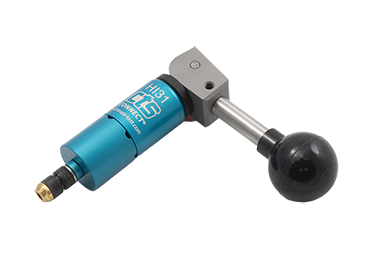

HI31

The HI31 Connector is designed for use with inner diameters of 0.394 in to 0.630 in. Select the HI31 to see specific model numbers for your specific part size application.
CTS-placeholder_380x270

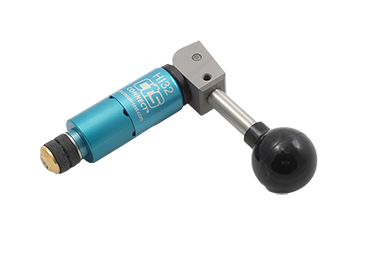

HI32

The HIF32 Connector is designed for use with inner diameters of 0.630 in to 0.866 in. Select the HIF32 to see specific model numbers for your specific part size application.
CTS-placeholder_380x270

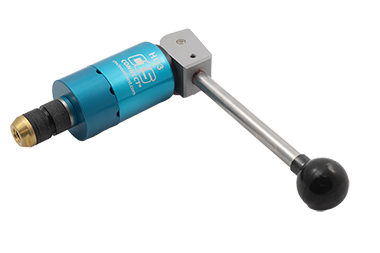

HI33

The HI33 Connector is designed for use with inner diameters of 0.866 in to 1.102 in . Select the HI33 to see specific model numbers for your specific part size application.
HI34_CTS-Connect__380x270

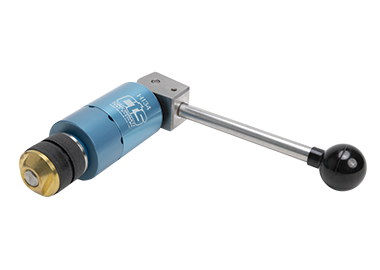

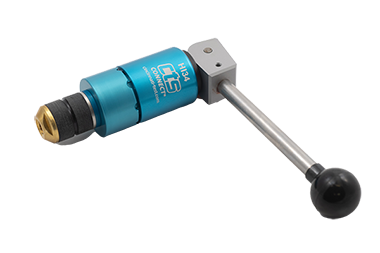

HI34

The HIF34 Connector is designed for use with inner diameters of 1.102in to 1.339 in. Select the HIF34 to see specific model numbers for your specific part size application.
CTS-placeholder_380x270

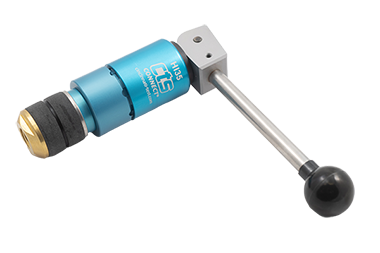

HI35

The HI35 Connector is designed for use with inner diameters of 1.339 in to 1.693 in. Select the HI35 to see specific model numbers for your specific part size application.
HI36_CTS-Connect__380x270

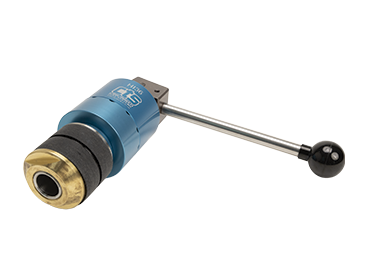

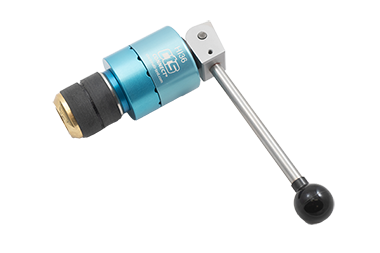

HI36

The HI36 Connector is designed for use with inner diameters of 1.693 in to 2.165 in. Select the HI36 to see specific model numbers for your specific part size application.
CTS-placeholder_380x270

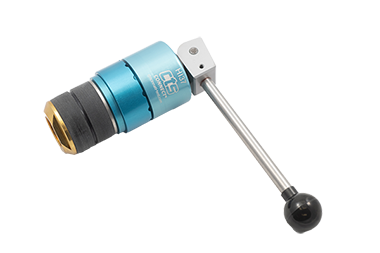

HI37

The HI37 Connector is designed for use with inner diameters of 2.165 in to 2.585 in. Select the HI37 to see specific model numbers for your specific part size application.
CTS-placeholder_380x270

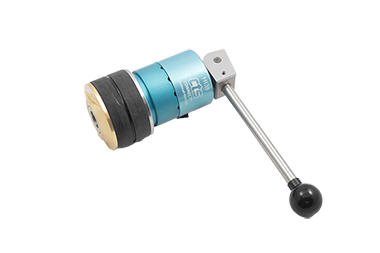

HI38

The HI38 Connector is designed for use with inner diameters of 2.585 in to 3.005 in. Select the HI38 to see specific model numbers for your specific part size application.
CTS-placeholder_380x270

HIF30

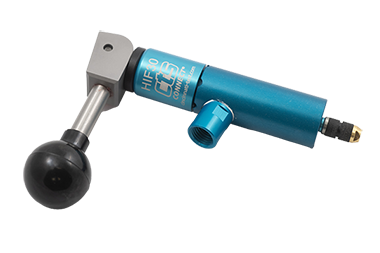

The HIF30 Connector is designed for use with inner diameters of 0.290 in to 0.394 in. Select the HIF30 to see specific model numbers for your specific part size application.
HIF31_CTS-Connect__380x270

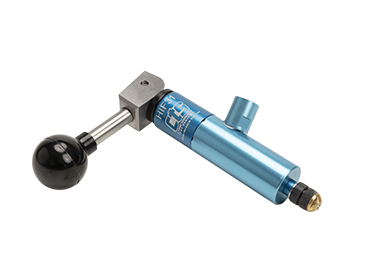

HIF31

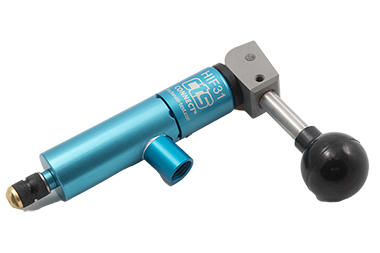

The HIF31 Connector is designed for use with inner diameters of 0.394 in to 0.630 in. Select the HIF31 to see specific model numbers for your specific part size application.
CTS-placeholder_380x270

HIF32

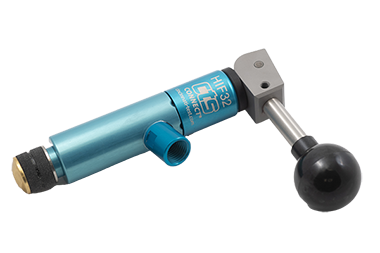

The HIF32 Connector is designed for use with inner diameters of 0.630 in to 0.866 in. Select the HIF32 to see specific model numbers for your specific part size application.
CTS-placeholder_380x270

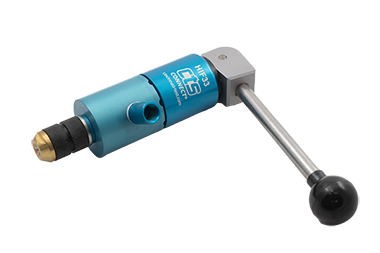

HIF33

The HIF33 Connector is designed for use with inner diameters of 0.866 in to 1.102 in . Select the HIF33 to see specific model numbers for your specific part size application.
HIF34_CTS-Connect__380x270

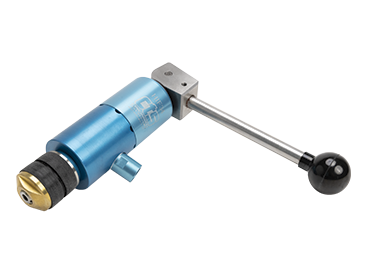

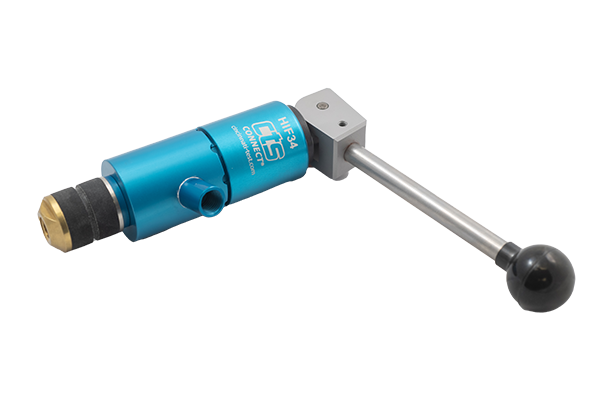

HIF34

The HIF34 Connector is designed for use with inner diameters of 1.102 in to 1.339 in. Select the HIF34 to see specific model numbers for your specific part size application.
CTS-placeholder_380x270

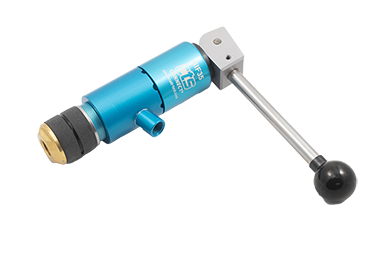

HIF35

The HIF35 Connector is designed for use with inner diameters of 1.339 in to 1.693 in. Select the HIF35 to see specific model numbers for your specific part size application.
HIF36_CTS-Connect__380x270

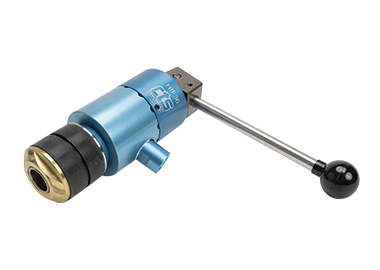

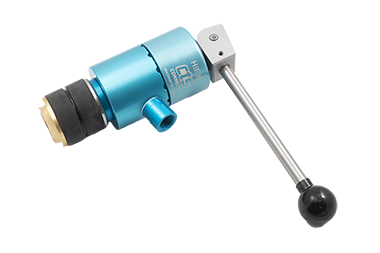

HIF36

The HIF36 Connector is designed for use with inner diameters of 1.693 in to 2.165 in. Select the HIF36 to see specific model numbers for your specific part size application.
CTS-placeholder_380x270

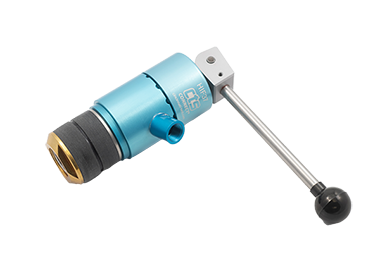

HIF37

The HIF37 Connector is designed for use with inner diameters of 2.165 in to 2.585 in. Select the HIF37 to see specific model numbers for your specific part size application.
CTS-placeholder_380x270

HIF38

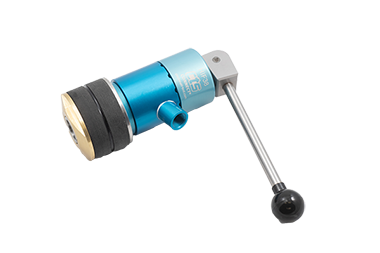

The HIF38 Connector is designed for use with inner diameters of 2.585 in to 3.005 in. Select the HIF38 to see specific model numbers for your specific part size application.
CTS-placeholder_380x270

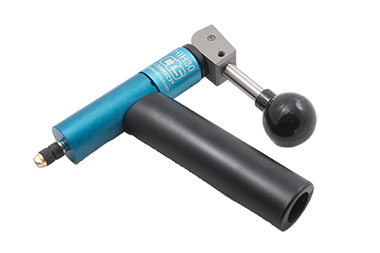

HIH30

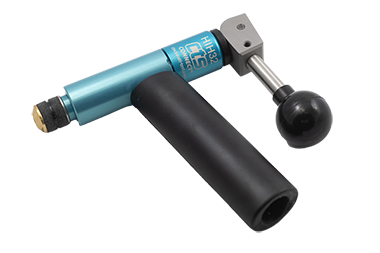

The HIH30 Model Connector features a comfort grip handle integrated with the inlet. This model can accomodate I.D. bores of 0.290" to 0.394". For details select this model.
HIH31_CTS-Connect__380x270

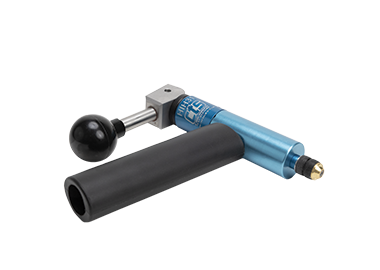

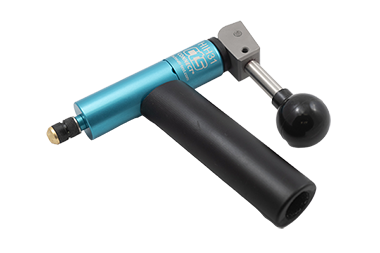

HIH31

The HIH31 Model Connector features a comfort grip handle integrated with the inlet. This model can accomodate I.D. bores of 0.394" to 0.630". For details select this model.
CTS-placeholder_380x270

HIH32

The HIH32 Model Connector features a comfort grip handle integrated with the inlet. This model can accomodate I.D. bores of 0.630" to 0.866". For details select this model.
CTS-placeholder_380x270

HIH33

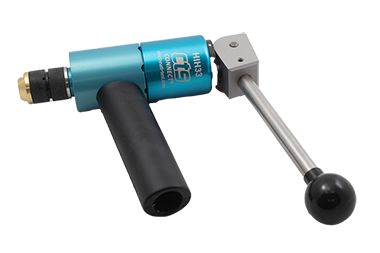

The HIH33 Model Connector features a comfort grip handle integrated with the inlet. This model can accomodate I.D. bores of 0.866" to 1.102". For details select this model.
HIH34_CTS-Connect__380x270

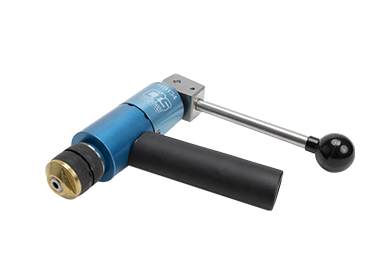

HIH34

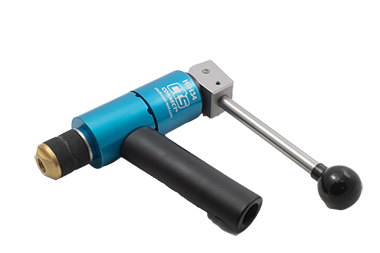

The HIH34 Model Connector features a comfort grip handle integrated with the inlet. This model can accomodate I.D. bores of 1.102" to 1.339". For details select this model.
CTS-placeholder_380x270

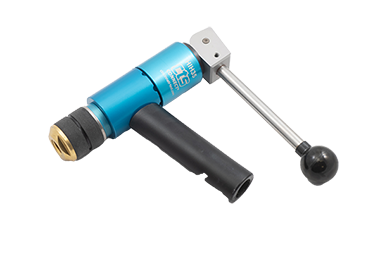

HIH35

The HIH35 Model Connector features a comfort grip handle integrated with the inlet. This model can accomodate I.D. bores of 1.339" to 1.693". For details select this model.
