- Superior sealing capability without the risk of scratching the surface of the part
- Large test/fill port holes for better conductance
- Easy seal replacement
- Long seal life

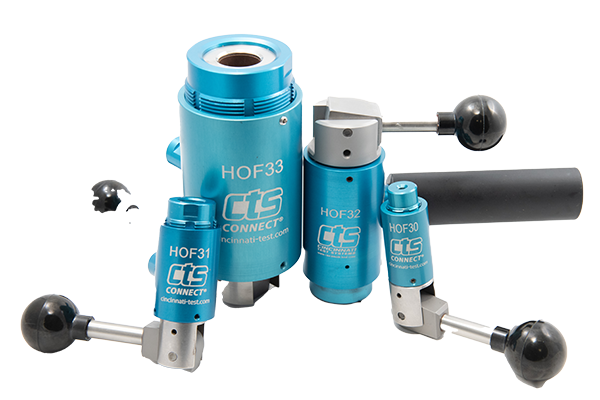

Outside Seal and Fill Manual Connectors
The CTS Connect HO series seal on the outer diameter of smooth, rough or threaded features of a part, and allow filling or pressurizing through the fill port. They consist of a cam-driven piston that compresses the CTS-proprietary seal material against the surface of the part, creating a tight seal that meets all test pressure requirements, regardless of surface shape or finish.
Sealing ranges are from 0.030”-1.510” and standard threaded sizes (NPT, Metric, SAE, and BS). Sealing pressure from vacuum to 100 psig, depending upon the port surface finish. The HOF is the base model; the HOH features an ergonomic grip handle for operator comfort.
Find the HO Connector for Your Application

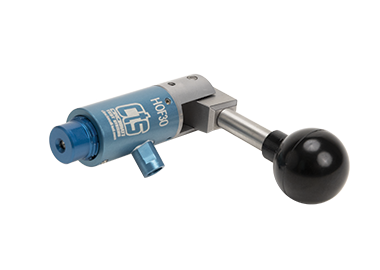

HOF30
HOF30 is designed to seal smooth outer diameters in the range of 0.030" to 0.130".

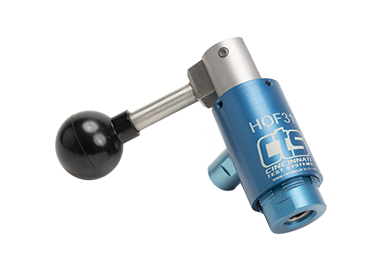

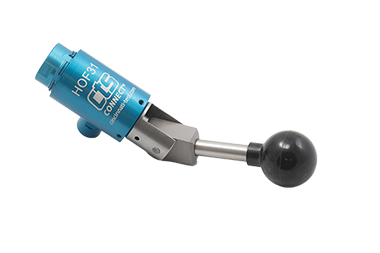

HOF31
HOF31 is designed to seal smooth outer diameters in the range of 0.100" to 0.510".

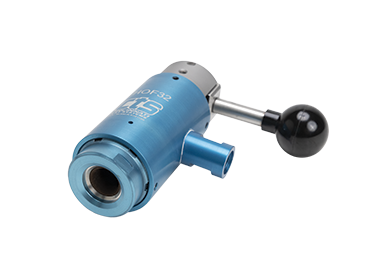

HOF32
HOF32 is designed to seal smooth outer diameters in the range of 0.433" to 0.827".

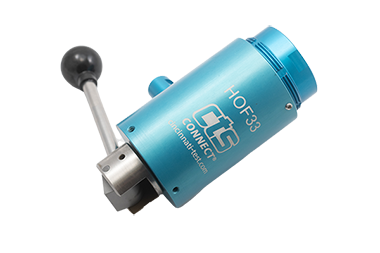

HOF33
The HOF33 Series of outside seal & fill tools is great for smooth, rough or threaded part exteriors & pressurizes through the fill port.

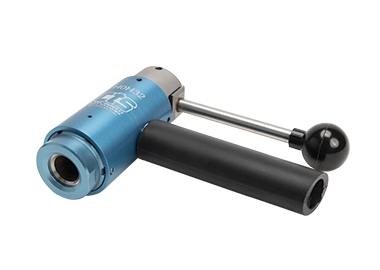

HOH32
HOH32 is designed to seal smooth outer diameters in the range of 0.433" to 0.827".

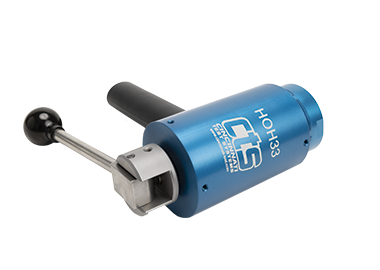

HOH33
Benefits include:
Talk to Us About Your Sealing Design
Request a quote for the pneumatic seals and pneumatic fittings your application requires or contact us to learn more about our high-performance CTS Connect products.
