CO31 Air Actuated External Connector

The CO31 Connector will seal the outside diameter of a pipe or tube and has a sealing range from 0.100 to 0.510” (2.5 to 13 mm), in incremental ranges or internal pipe thread sealing applications.

CO31 ID Sealing Ranges:
AA = 0.100" - 0.180” (2.5 mm – 4.6 mm)
AB = 0.180" - 0.260” (4.6 mm – 6.6 mm)
AC = 0.260" - 0.340” (6.6 mm – 8.6 mm)
AD = 1/8" NPT
AE = 0.340" - 0.420” (8.6 mm – 10.7 mm)
AF = 0.420" - 0.510” (10.7 mm - 13 mm)
Body Only

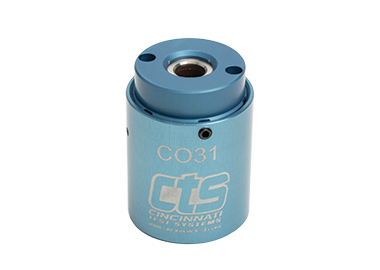

CO31_AC_CTS-Connect__500x400

CO31

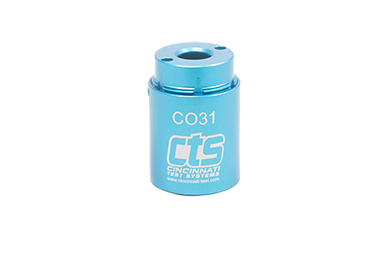

CO31 Body Only w/o Seal Kit

CO31-AA

CTSCONNECT CO31-AA OD Pneumatic Seal - 0.100 - 0.180 Seal Range

CO31-AA-MSK

CO31-AA-MSK Main Seal Kit - 0.100 - 0.180 Seal Range

CO31-AA-MSK-M

CO31-AA-MSK-M Medical Grade Main Seal Kit - 0.100 - 0.180 Seal Range

CO31-AA-SKP-M

CO31-AA-SKP-M Medical Grade Seal Kit Pack of 5 - 0.100 - 0.180 Seal Range

CO31-AA-LEADIN

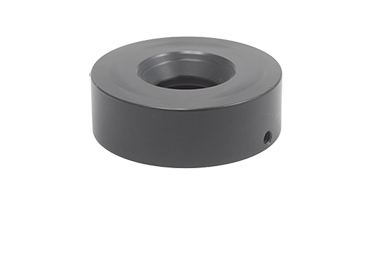

CTSCONNECT CO31-AA-LEADIN Tapered Guide Adapter - 0.100 - 0.180 Seal Range

CO31-AB

CTSCONNECT CO31-AB OD Pneumatic Seal - 0.180 - 0.260 Seal Range

CO31-AB-MSK

CO31-AB-MSK Main Seal Kit - 0.180 - 0.260 Seal Range

CO31-AB-SKP

CO31-AB-SKP Seal Kit Pack of 5 - 0.180 - 0.260 Seal Range

CO31-AB-MSK-M

CO31-AB-MSK-M Medical Grade Main Seal Kit - 0.180 - 0.260 Seal Range

CO31-AB-SKP-M

CO31-AB-SKP-M Medical Grade Seal Kit Pack of 5 - 0.180 - 0.260 Seal Range

CO31-AB-LEADIN

CTSCONNECT CO31-AB-LEADIN Tapered Guide Adapter - 0.180 - 0.260 Seal Range

CO31-AC

CTSCONNECT CO31-AC OD Pneumatic Seal - 0.260 - 0.340 Seal Range

CO31-AC-MSK

CO31-AC-MSK Main Seal Kit - 0.260 - 0.340 Seal Range

CO31-AC-MSK-M

CO31-AC-MSK-M Medical Grade Main Seal Kit - 0.260 - 0.340 Seal Range

CO31-AC-SKP-M

CO31-AC-SKP-M Medical Grade Seal Kit Pack of 5 - 0.260 - 0.340 Seal Range

CO31-AC-LEADIN

CTSCONNECT CO31-AC-LEADIN Tapered Guide Adapter - 0.260 - 0.340 Seal Range

CO31-AD

CTSCONNECT CO31-AD OD Pneumatic Seal - 1/8 NPT Seal Range

CO31-AD-MSK

CO31-AD-MSK Main Seal Kit - 1/8 NPT Seal Range

CO31-AD-LEADIN

CTSCONNECT CO31-AD-LEADIN Tapered Guide Adapter - 1/8 NPT Seal Range

CO31-AE

CTSCONNECT CO31-AE OD Pneumatic Seal - 0.340 - 0.420 Seal Range

CO31-AE-MSK

CO31-AE-MSK Main Seal Kit - 0.340 - 0.420 Seal Range

CO31-AE-SKP

CO31-AE-SKP Seal Kit Pack of 5 - 0.340 - 0.420 Seal Range

CO31-AE-MSK-M

CO31-AE-MSK-M Medical Grade Main Seal Kit - 0.340 - 0.420 Seal Range

CO31-AE-SKP-M

CO31-AE-SKP-M Medical Grade Seal Kit Pack of 5 - 0.340 - 0.420 Seal Range

CO31-AE-LEADIN

CTSCONNECT CO31-AE-LEADIN Tapered Guide Adapter - 0.340 - 0.420 Seal Range

CO31-AF

CTSCONNECT CO31-AF OD Pneumatic Seal - 0.420 - 0.510 Seal Range

CO31-AF-MSK

CO31-AF-MSK Main Seal Kit - 0.420 - 0.510 Seal Range

CO31-AF-SKP

CO31-AF-SKP Seal Kit Pack of 5 - 0.420 - 0.510 Seal Range

CO31-AF-MSK-M

CO31-AF-MSK-M Medical Grade Main Seal Kit - 0.420 - 0.510 Seal Range

CO31-AF-SKP-M

CO31-AF-SKP-M Medical Grade Seal Kit Pack of 5 - 0.420 - 0.510 Seal Range

CO31-AF-LEADIN

CTSCONNECT CO31-AF-LEADIN Tapered Guide Adapter - 0.420 - 0.510 Seal Range

CO31-M8

CTSCONNECT CO31-M8 OD Pneumatic Seal - M8 Seal Range

CO31-M8-MSK

CO31-M8-MSK Main Seal Kit - M8 Seal Range

CO31-M8-SKP

CO31-M8-SKP Seal Kit Pack of 5 - M8 Seal Range

CO31-M8-LEADIN

CTSCONNECT CO31-M8-LEADIN Tapered Guide Adapter - M8 Seal Range

CO31-M10

CTSCONNECT CO31-M10 OD Pneumatic Seal - M10 Seal Range

CO31-M10-MSK

CO31-M10-MSK Main Seal Kit - M10 Seal Range

CO31-M10-SKP

CO31-M10-SKP Seal Kit Pack of 5 - M10 Seal Range

CO31-M10-LEADIN

CTSCONNECT CO31-M10-LEADIN Tapered Guide Adapter - M10 Seal Range

CO31-SAE-0312

CTSCONNECT CO31-SAE-0312 OD Pneumatic Seal - SAE 5/16 Seal Range

CO31-SAE-0312-MSK

CO31-SAE-0312-MSK Main Seal Kit - SAE 5/16 Seal Range

CO31-SAE-0312-SKP

CO31-SAE-0312-SKP Seal Kit Pack of 5 - SAE 5/16 Seal Range

CO31-SAE-0312-LEADIN

CTSCONNECT CO31-SAE-0312-LEADIN Tapered Guide Adapter - SAE 5/16 Seal Range

CO31-SAE-0375

CTSCONNECT CO31-SAE-0375 OD Pneumatic Seal - SAE 3/8 Seal Range

CO31-SAE-0375-MSK

CO31-SAE-0375-MSK Main Seal Kit - SAE 3/8 Seal Range

CO31-SAE-0375-SKP

CO31-SAE-0375-SKP Seal Kit Pack of 5 - SAE 3/8 Seal Range

CO31-SAE-0375-LEADIN

CTSCONNECT CO31-SAE-0375-LEADIN Tapered Guide Adapter - SAE 3/8 Seal Range

CO31-SAE-0437

CTSCONNECT CO31-SAE-0437 OD Pneumatic Seal - SAE 7/16 Seal Range

CO31-SAE-0437-MSK

CO31-SAE-0437-MSK Main Seal Kit - SAE 7/16 Seal Range

CO31-SAE-0437-SKP

CO31-SAE-0437-SKP Seal Kit Pack of 5 - SAE 7/16 Seal Range

CO31-SAE-0437-LEADIN

CTSCONNECT CO31-SAE-0437-LEADIN Tapered Guide Adapter - SAE 7/16 Seal Range

CO31-SAE-0500

CTSCONNECT CO31-SAE-0500 OD Pneumatic Seal - SAE 1/2 Seal Range

CO31-SAE-0500-MSK

CO31-SAE-0500-MSK Main Seal Kit - SAE 1/2 Seal Range

CO31-SAE-0500-SKP

CO31-SAE-0500-SKP Seal Kit Pack of 5 - SAE 1/2 Seal Range

CO31-SAE-0500-LEADIN

CTSCONNECT CO31-SAE-0500-LEADIN Tapered Guide Adapter - SAE 1/2 Seal Range

CO31-AA-SEAL

CO31-AA-SEAL 40 DURO S DARK BROWN

CO31-AF-SEAL

CO31-AF-SEAL 40 S DARK BROWN

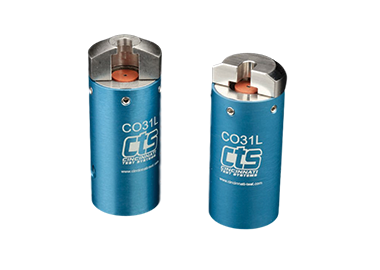

CO31L-SEAL

CO31L-SEAL M60S MEDICAL SALMON
